Leírás és Paraméterek

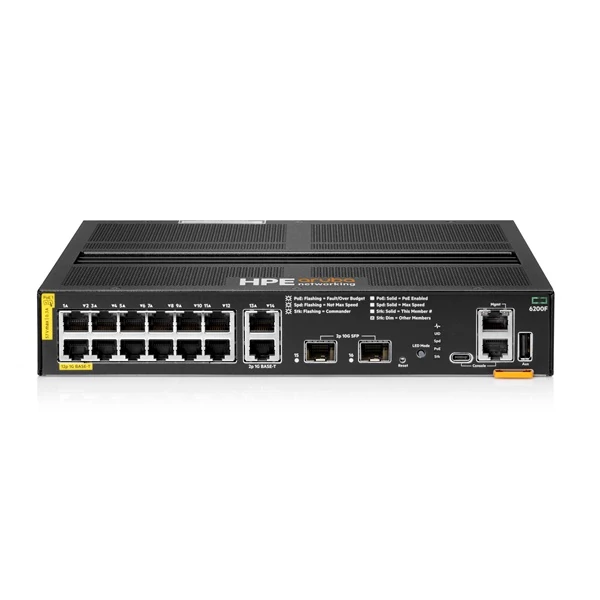

| Product | 6200F 12G CL4 PoE 2G/2SFP+ |
| Part Number | R8Q72A R8V13A |
| Switch Type | Fixed Port |
| Network OS | ArubaOS-CX |
| Routing / Switching | Layer 3 Dynamic |
| Management | Fully Managed |
| Included Accessories | |
| Included Accessories | N/A |
| Physical Properties | |
| Dimensions | 10.0(w) x 12.0(d) x 1.73(h) in (25.4 x 30.5 x 4.39 cm) (1U height) |
| Weight | 7.10 lb (3.22 kg) |
| Port Types | |
| LAN Ports | 12 10/100/1000 CL4 PoE ports+ 2x 1GbE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Dual Personality Ports | N/A |
| 1/2.5/5/10GbE | N/A |
| SFP Ports | N/A |
| SFP+ Ports | 2 SFP+ 1/10GbE ports; PHY-less |
| SFP28 Ports | N/A |
| SFP56 Ports | N/A |
| XFP Ports | N/A |
| X2 Ports | N/A |
| CX4 Ports | N/A |
| 10GBASE-T Ports | N/A |
| QSFP+ Ports | N/A |
| QSFP28 Ports | N/A |
| QSFP56 Ports | N/A |
| QSFP-DD Ports | N/A |
| Module Slots | N/A |
| Console Port | 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth dongle to be used with Aruba CX Mobile App |
| Power Supplies | |
| Power supply slots | N/A |
| Power supply requirements | N/A |
| Memory and Processor | |
| Memory and Processor | Quad Core ARM Cortex A72 @ 1.2 GHz, 8 GB DDR4; 16 GB eMMC; Packet buffer size: 8 MB |
| Gigabit Module | N/A |
| 10Gb Module | N/A |
| Management Module | N/A |
| Fabric Module | N/A |
| I/O Module | N/A |
| Mounting | |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
| Performance | |
| 100 Mb Latency | N/A |
| 1000 Mb Latency | < 3.8 µs (LIFO 64-byte packets) |
| 10 Gbps Latency | < 2.9 µs (LIFO 64-byte packets) |
| 40 Gbps Latency | N/A |
| Throughput | up to 45.1 Mpps |
| Switching Capacity | 68 Gbps |
| Switch Fabric Speed | N/A |
| Routing Table Size | 2,048 IPv4, 1,024 IPv6 |
| MAC Address Table Size | 16,000 entries |
| MACsec Capable Hardware | No |
| MACsec Software Support | No |
| MACsec with EAP-TLS | No |
| MACsec Capable Uplink Ports | No |
| Electrical Characteristics | |
| Description | N/A |
| Voltage | 90-264V |
| Current |
