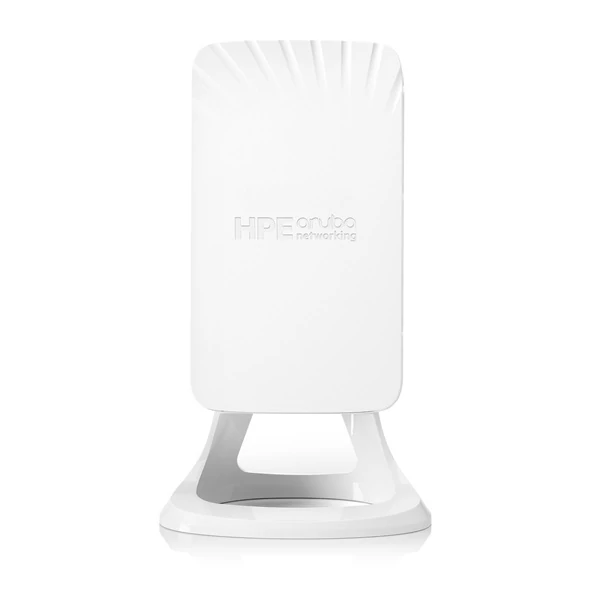

| Product | AP-505H |
| Part Number | R3V54A R3V52A R3V50A R3V46A R3V48A R3V55A R3V53A R3V51A R3V47A R3V49A |
| Description | Indoor, dual radio, 5GHz 802.11ax 2x2 MIMO and 2.4GHz 802.11ax 2x2 MIMO |
| Product Type | Access Point |
| Ports | 1x 100/1000/2500BASE-T, 4x 10/100/1000 |
| Number of Radios | 2 |
| Wi-Fi Alliance Certification | •Wi-Fi CERTIFIED a, b, g, n, ac •Wi-Fi CERTIFIED 6 (ax) •WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) •WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband •Passpoint (release 2) •Bluetooth SIG •Ethernet |
| Performance | |
| Memory and Processor | N/A |
| MAC Address Table Size | N/A |
| Electrical Characteristics | |
| Maximum Heat Dissipation | N/A |
| Maximum Power Rating | DC: 13.0W (19.0W, 44.0W, 50.0W) 802.3bt: 14.0W (20.0W, 45.0W, 51.0W) 802.3at (IPM enabled): 14.0W (20.0W, 25.5W, 25.5W) 802.3af (IPM enabled): 13.5W (13.5W, 13.5W, 13.5W) |
| Power Inputs | DC: 13.0W (19.0W, 44.0W, 50.0W) 802.3bt: 14.0W (20.0W, 45.0W, 51.0W) 802.3at (IPM enabled): 14.0W (20.0W, 25.5W, 25.5W) 802.3af (IPM enabled): 13.5W (13.5W, 13.5W, 13.5W) |
| Antenna Connector | N/A |
| Antenna | Two integrated semi-directional antennas for 2x2 MIMO with peak antenna gain of 6.3dBi in 2.4GHz and 4dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. |
| Number of Internal Antennas | Two integrated semi-directional antennas for 2x2 MIMO with peak antenna gain of 6.3dBi in 2.4GHz and 4dBi in 5GHz. |
| Number of External Antennas | N/A |
| Notes | N/A |
| Physical Characteristics | |
| Dimensions | 86mm (W) x 50mm (D) x 150mm (H) |
| Weight | 360g |
| Additional Details | |
| MIMO | 2x2 |
| Spatial Streams | 2 5GHz radio: Two spatial stream (SU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2GHz radio: Two spatial stream (SU) MIMO for up to 287Mbps wireless data rate (HE20) Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended |
| Notes | N/A |
| Gyártó | HP HEWLETT PACKARD |
