Leírás és Paraméterek

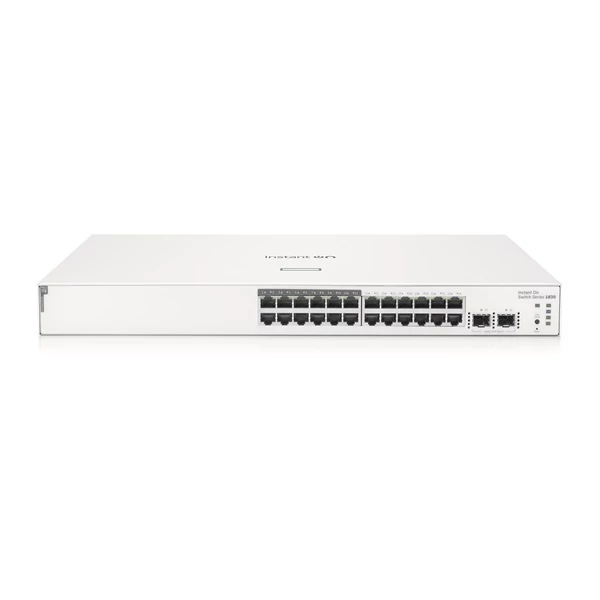

| Product | 1830 24G 12p CL4 Switch |
| Part Number | JL813A |
| Switch Type | Fixed Port |
| Network OS | Aruba Instant On |
| Routing / Switching | Layer 2 Only |
| Management | Smart Managed |
| Included Accessories | |
| Included Accessories | N/A |
| Physical Properties | |
| Dimensions | 17.4(w) x 9.96(d) x 1.72(h) in (44.3 x 25.3 x 4.39 cm) (1U height) |
| Weight | 7.65 lb (3.47 kg) |
| Port Types | |
| LAN Ports | 24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only |
| Dual Personality Ports | N/A |
| 1/2.5/5/10GbE | N/A |
| SFP Ports | 2 SFP 1GbE ports |
| SFP+ Ports | N/A |
| SFP28 Ports | N/A |
| SFP56 Ports | N/A |
| XFP Ports | N/A |
| X2 Ports | N/A |
| CX4 Ports | N/A |
| 10GBASE-T Ports | N/A |
| QSFP+ Ports | N/A |
| QSFP28 Ports | N/A |
| QSFP56 Ports | N/A |
| QSFP-DD Ports | N/A |
| Module Slots | N/A |
| Console Port | N/A |
| Power Supplies | |
| Power supply slots | N/A |
| Power supply requirements | Internal power supply |
| Memory and Processor | |
| Memory and Processor | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Gigabit Module | N/A |
| 10Gb Module | N/A |
| Management Module | N/A |
| Fabric Module | N/A |
| I/O Module | N/A |
| Mounting | |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
| Performance | |
| 100 Mb Latency | < 5.2 uSec |
| 1000 Mb Latency | < 2.8 uSec |
| 10 Gbps Latency | N/A |
| 40 Gbps Latency | N/A |
| Throughput | 36.68 Mpps |
| Switching Capacity | 52 Gbps |
| Switch Fabric Speed | N/A |
| Routing Table Size | N/A |
| MAC Address Table Size | 16000 entries |
| MACsec Capable Hardware | N/A |
| MACsec Software Support | N/A |
| MACsec with EAP-TLS | N/A |
| MACsec Capable Uplink Ports | N/A |
| Electrical Characteristics | |
| Description | N/A |
| Voltage | 100 - 240 VAC |
| Current | 2.7A/1.4A |
| Gyártó | HP HEWLETT PACKARD |
