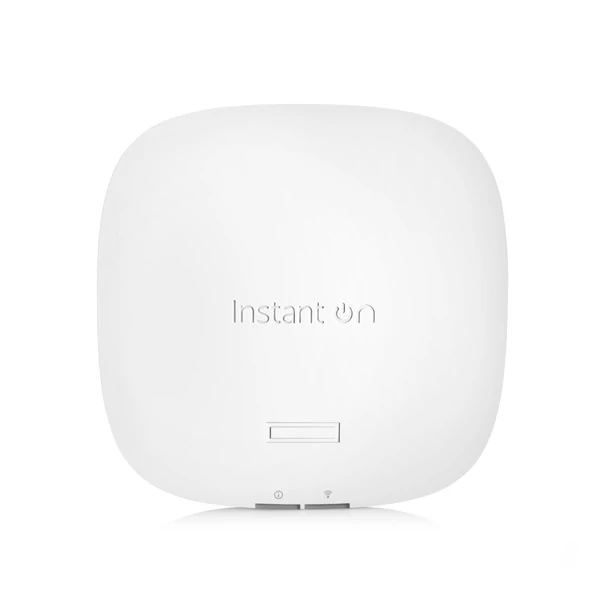

HPE Aruba NW ION AP22 with 12V PSU EU Bundle

WI-FI Radio Specifications

• Dual radio for simultaneous dual-band operation
• 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
• 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
• Maximum (aggregated, conducted total) transmit power (limited by local regulatory requirements):
• 5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)
• 2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)

Power

• Power over Ethernet (POE): 802.3af (class 3)
• Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
• DC power (12V)
• Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.

Additional interfaces

• Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
• DC power connector (12V)
• Bluetooth Low Energy (BLE) radio
• LED status indicators (2)
• Reset/LED control button
• Kensington security slot

Antennas

• Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

Mounting

• The access point ships with a white mount clip that can attach to both wall and ceiling.
• You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment.
