Leírás és Paraméterek
Specifications
| Details | |
|---|---|

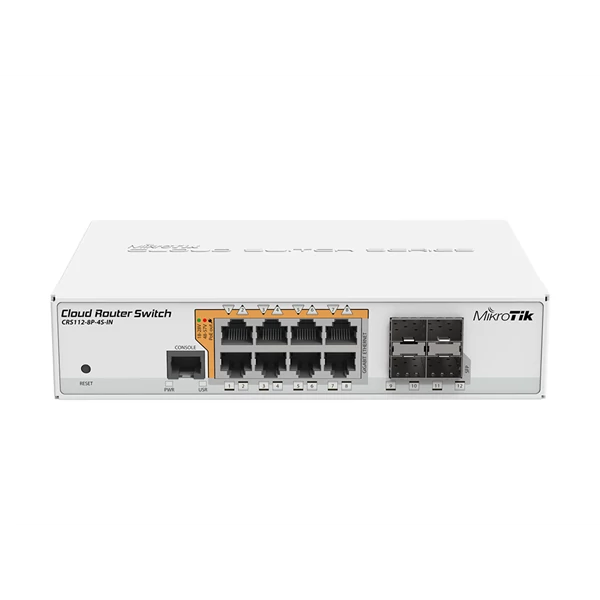

| Product code | CRS112-8P-4S-IN |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| License level | 5 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| PoE out | 802.3af/at |
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18 - 57 V |
| Max out per port output (input > 30 V) | 450 mA |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2.8 A |
| Max power consumption | 150 W |
| Max power consumption without attachments | 10 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
Included parts
| Gyártó | MIKROTIK |
| PoE (Power over Ethernet) | Van |
| Portok száma | 12 |
| SFP port | 4 |
