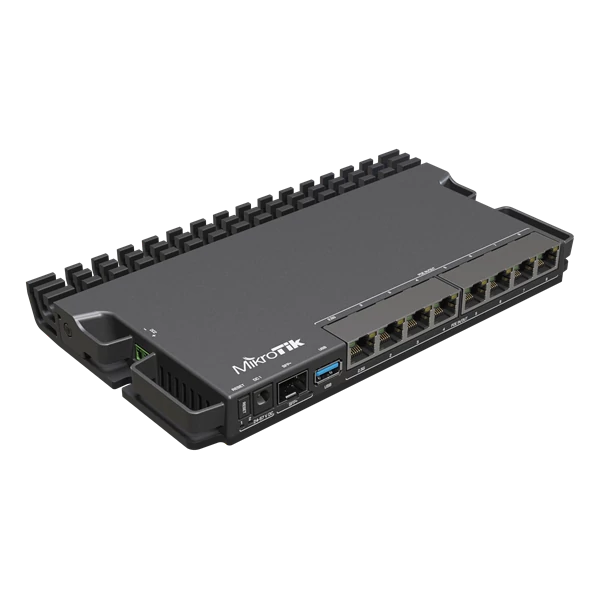

MIKROTIK Vezetékes Router RouterBOARD 7x1000Mbps + 1x2,5Gbit + 1x10Gbit SFP+, Rackes - RB5009UPR+S+IN
125.100 Ft (98.504 Ft + ÁFA)

MIKROTIK Vezetékes Router RouterBOARD 7x1000Mbps + 1x2,5Gbit + 1x10Gbit SFP+, Rackes - RB5009UPR+S+IN

125.100 Ft (98.504 Ft + ÁFA)
Gyártó cikkszám: RB5009UPR+S+IN
Cikkszám: 324283
Elérhetőség: Raktáron
Átlagos értékelés: Nem értékelt
Gyártó: Mikrotik

Leírás és Paraméterek

Specifications

Details
Product code RB5009UPr+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes


Powering

Details
Number of DC inputs 3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 16 W
Cooling type Passive
PoE in 802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage 24-57 V

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 900 mA
Max out per port output (input 30-57 V) 440 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130

Ethernet

Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) 1

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
Gyártó MIKROTIK
Portok száma 9
