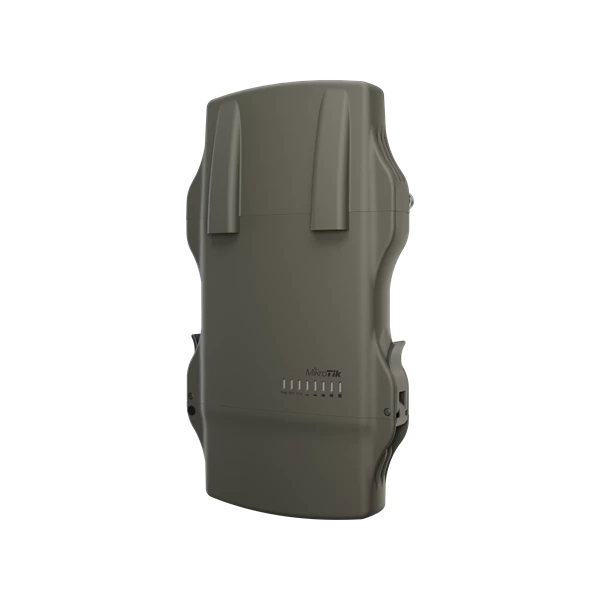

MIKROTIK Wireless Access Point NetMetal AC2, DualBand, 1x1000Mbps, 1xMicroSIM, 1,167Gbps - RBD23UGS-5HPacD2HnD-NM
75.601 Ft (59.528 Ft + ÁFA)

MIKROTIK Wireless Access Point NetMetal AC2, DualBand, 1x1000Mbps, 1xMicroSIM, 1,167Gbps - RBD23UGS-5HPacD2HnD-NM

75.601 Ft (59.528 Ft + ÁFA)
Gyártó cikkszám: RBD23UGS-5HPACD2HND-NM
Cikkszám: 316928
Elérhetőség: Nincs raktáron
Átlagos értékelés: Nem értékelt
Gyártó: Mikrotik

Leírás és Paraméterek

Specifications

Details
Product code RBD23UGS-5HPacD2HnD-NM
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 143 x 247 x 48 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes



Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 28 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V


Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5


Ethernet

Details
10/100/1000 Ethernet ports 1


Fiber

Details
SFP ports 1


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP66


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -94
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75
MCS9 23 -72



Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Frekvencia 2.4GHz, 5GHz
Gyártó MIKROTIK
Kültéri kivitel igen
Sebesség 1167mbps
