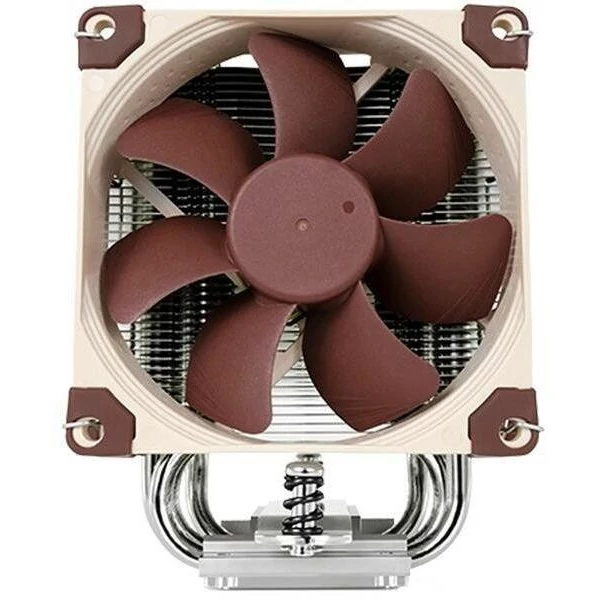

Cooler Specification
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.)
Height (without fan)
125 mm
Width (without fan)
95 mm
Depth (without fan)
68 mm
Height (with fan)
125 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
618 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
93
Max. TDP
see NSPR
Fan compatibility
92x92x25
Scope of delivery
- NF-A9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Fan-clips for second NF-A9
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
78,9 m3/h
62,6 m3/h
Max. acoustical noise
22,8 dB(A)
Max. acoustical noise with L.N.A.
16,3 dB(A)
Input power (max.)
1,2 W
Voltage range
12 V
MTTF
> 150.000 h
| Gyártó | NOCTUA |
| Hűtés típusa | Aktív |
