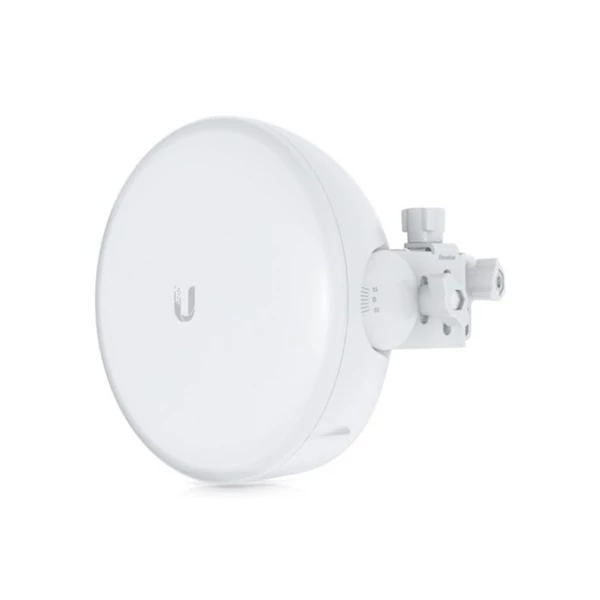

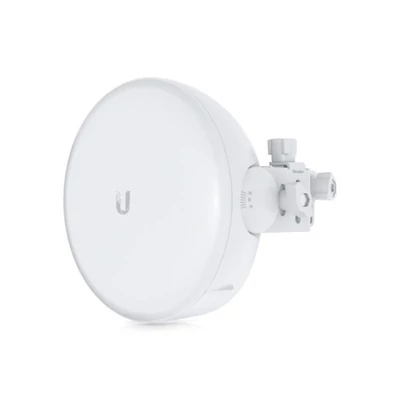

UBiQUiTi Wireless Antenna AirMAX GigaBeam Plus 60GHz, 1,5+Gbps, 1,5km, kültéri - GBE-PLUS
96.410 Ft (75.914 Ft + ÁFA)

UBiQUiTi Wireless Antenna AirMAX GigaBeam Plus 60GHz, 1,5+Gbps, 1,5km, kültéri - GBE-PLUS

96.410 Ft (75.914 Ft + ÁFA)
Gyártó cikkszám: GBE-PLUS
Cikkszám: 300463
Elérhetőség: Nincs raktáron
Átlagos értékelés: Nem értékelt
Gyártó: Ubiquiti

Leírás és Paraméterek

Dimensions O155 x 137 mm (O6.1 x 5.4")
Weight 1kg (2.2 lb)
Enclosure Materials UV Resistance Polycarbonate, Stainless Steel
Mount Materials Metal
Wind Loading 50 N at 200 km/h (11.24 lbf at 125 mph)
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking Interface 10/100/1000 Mbps Ethernet RJ45
Management Interface Ethernet In-Band
RF Connections Internal
Max. Power Consumption 11W
Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply 24VDC, 0.5A Gigabit PoE Adapter
24V, 1A for using Motor Accessory
Supported Voltage Range 22 to 26VDC
ESD/EMP Protection Air/Contact: ± 24kV
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 - 95% Noncondensing
Certifications FCC, IC, CE
Power Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Internet Service Provider (UISP™)
Blue: Connected to UISP
Ethernet Flashing Blue: Ethernet Traffic Detected
60GHz Blue: Active Connection
OS airOS®
Operating Modes PtP as Access Point or Station
Ubiquiti Specific Features Integrated 60 GHz Radio, Discovery Protocol
Security WPA2 AES Only
Dashboard Yes
Wireless Settings Yes
Network Settings Yes
System Yes
Services UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Software Management Bluetooth Management for Easy Setup Over UISP™ App
Minimum Software Requirements Any Modern Web Browser/iPhone/Android
Operating Frequency* 57,000 - 66,000 MHz
* Depends on regulatory region.
Max. Conducted TX Power 17 dBm
Channel Bandwidth 2160 MHz
Operating Channels 58320, 60480, 62640, 64800 MHz
Antenna Gain 35 dBi
Beamwidth HPOL: NaN (The Antenna is Only Vertically Polarized)
VPOL: 3°
Elevation: 3°
Management Radio 2400 - 2483.5 MHz
Electrical Downtilt
Hatótávolság 1,5km
Kültéri kivitel igen
