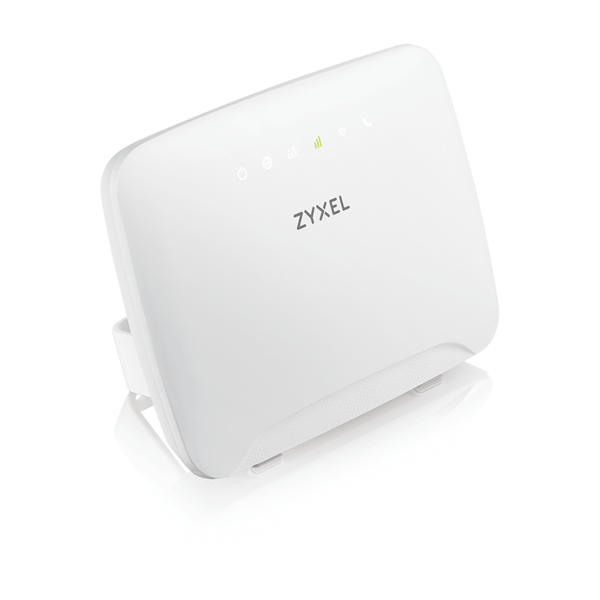

ZYXEL 3G/4G Modem + Wireless Router Dual-Band AC1200 1xWAN(1000Mbps) + 4xLAN(1000Mbps), LTE3316-M604-EU01V2F

LTE Air Interface

• Standard compliant: 3GPP Release 10 Cat. 6
• Support LTE band: 1/3/5/7/8/20/28/32/38/40/41
• Supported frequency:
  • LTE FDD 2600/2100/1800/900/850/800/700MHz
  • LTE TDD 2600/2500/2300 MHz
• 2 Carrier Aggregation combination:
  • B1+B1/B5/B8/B20/B28
  • B3+B3/B5/B7/B8/B20/B28
  • B7+B5/B7/B8/B20/B28
  • B38+B38; B40+B40; B41+B41
• LTE antenna: 2 internal antennas
• Peak data rate:
  • 300 Mbps DL within 40 MHz bandwidth (CA)
  • 50 Mbps UL within 20 MHz bandwidth

UMTS/GSM Air Interface

• Standard compliant: WCDMA band 1/3/5/8
• Supported frequency:
  • HSPA+/UMTS 2100/1800/900/850 MHz (Band 1/3/5/8)
  • WCDMA: 2100/1800/900/850 MHz
  • HSPA+ downlink data rate up to 42 Mbps
  • HSUPA uplink data rate up to 5.76 Mbps

WiFi Air Interface

• Wireless standard (Concurrent):
  • IEEE 802.11 b/g/n, 2.4 GHz
  • IEEE 802.11 a/n/ac, 5 GHz
• Wireless link speed:
  • 300 Mbps** for 2.4 GHz
  • 867 Mbps** for 5 GHz
• WiFi 2.4 GHz antenna: 2x2 internal antennas up to 3 dBi
• WiFi 5 GHz antenna: 2x2 internal antennas up to 5 dBi

Hardware Interface

• Four GbE RJ-45 LAN ports. LAN1 can be configured as Ethernet WAN port
• LEDs:
  • Power indication
  • Internet status
  • LTE/3G signal strength
  • WiFi status
  • FXS status
• One WPS & WiFi on/off button
• One 3FF micro SIM card socket
• One reset to default button
• One power on/off button
• One DC power jack
• One FXS RJ-11 phone port
• Two external LTE/3G antenna SMA connector (for external antenna option)
